ESP-RFID: Wi-Fi RFID door access control on ESP8266
Flash an ESP8266, wire an RC522, PN532, RDM6300 or Wiegand reader and a relay, and manage up to 1,000 users from a web UI.
Photos
Photos: esprfid
Key Facts
- Chip: ESP8266
- Readers: MFRC522, PN532, RDM6300, Wiegand
- Users: up to 1,000, timestamped logs
- Integration: web UI, WebSocket/JSON, MQTT
About This Project

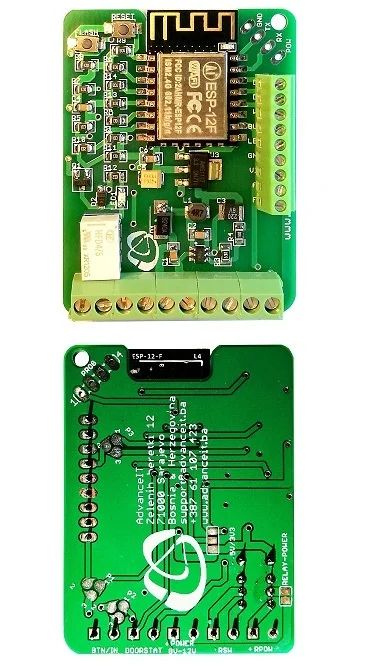

ESP-RFID is an access control system built on Espressif's ESP8266 and a cheap RFID reader: MFRC522, PN532, RDM6300 or any Wiegand reader. You flash it once and configure everything from a web interface, which manages up to 1,000 users, logs timestamped records using NTP time and talks to the browser over WebSocket with JSON. MQTT support lets it report to home automation. The project targets maker spaces, labs and schools that want a cheap, maintainable door system. An official open-source relay board is also available: it runs the ESP-12 module, reader and magnetic lock from a single 12V 2A supply, tracks door status, controls the reader's LED and buzzer and fits a DIN-mount enclosure.
Source & Attribution
Bill of Materials
Parts list
4 parts · 1 linked
Heads up: some Buy links are affiliate links. If you buy through one, MCU Atlas may earn a small commission at no extra cost to you. It never changes which parts we list. How this works
1× 12V 2A supply (official board) for reader and lock
Not included: 3D-printed case, wire, solder, USB cable
