Reevo Display: an ESP32-S3 dashboard for the Beno Reevo hubless e-bike
The Reevo's app is dead, so this ESP32-S3 touchscreen talks to the bike over BLE and replaces it: speed, battery, lights, lock and assist.
Photos
Photos: Seth
Key Facts
- Board: Freenove FNK0104B ESP32-S3, 2.8in capacitive touch
- Link to bike: BLE, no cloud
- Shows: speed, battery, trip; controls lights, lock, assist
- Extras: PIN unlock, web console, printable case
About This Project

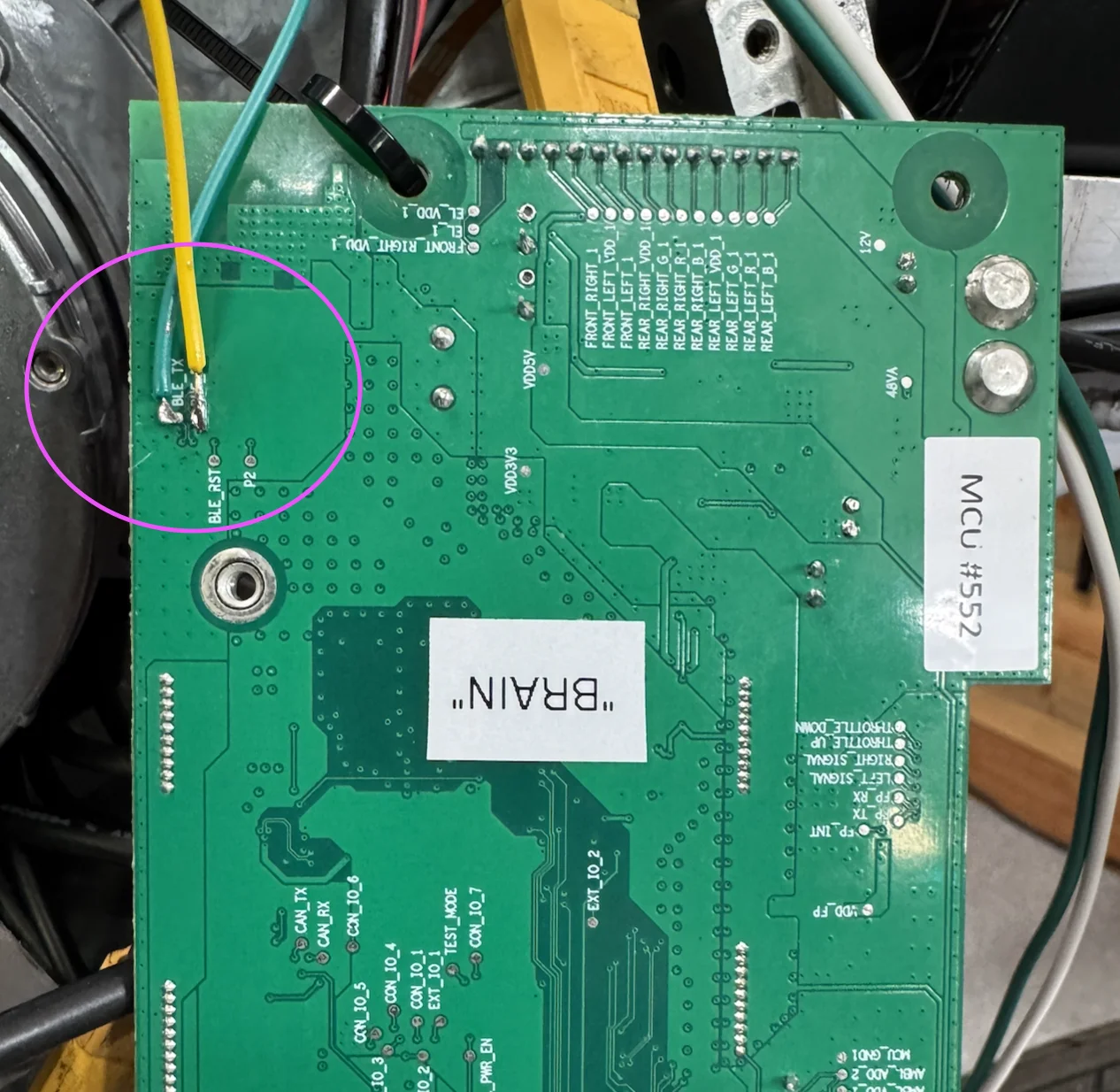

The Beno Reevo is a hubless e-bike whose maker abandoned it, leaving owners with a dead phone app. Reevo Display replaces the whole app with an ESP32-S3 touchscreen that talks to the bike directly over BLE, with no cloud, SIM or account. It shows a live speedometer, battery percentage and a resettable trip odometer, and gives manual control of the headlight, badge light, kickstand lock and assist level. Extras include a touch-PIN unlock, a brake warning that flashes the lights, a pedal-assist timeout after 10 idle minutes, master-code recovery, and a built-in Wi-Fi access point with a web console and full setup manual. The default target is the Freenove FNK0104B board with a 2.8in capacitive touchscreen, powered at 5V from the bike's mainboard or a USB battery, and a two-piece printable enclosure is included.
Source & Attribution
Bill of Materials
Parts list
3 parts · 2 linked
Heads up: some Buy links are affiliate links. If you buy through one, MCU Atlas may earn a small commission at no extra cost to you. It never changes which parts we list. How this works
1× 5V from bike mainboard, USB-C battery, or buck converter
1× 3D-printed two-piece case (STL in repo)
Not included: 3D-printed case, wire, solder, USB cable
